High Torque Smart Electric Screwdriver

XYD is an advanced manufacturer and supplier of High Torque Smart Electric Screwdriver for many years in China. High Torque Smart Electric Screwdriver equipped with an angle encoder to allow more flexible rotation need. XYD with its innovative and high quality Smart Electric Screwdriver and team's R&D and sales, XYD has won a good reputation in domestic and foreign markets.

Model:YM-ZN-050

Send Inquiry

Product Description

Located in China, XYD was established in 2003 as a specialized factory focused on the production of High Torque Smart Electric Screwdrivers. Over the years, XYD has evolved into a comprehensive manufacturer, seamlessly integrating all facets of production, supply, design, development, and sales of Smart Electric Screwdrivers. Widely recognized for its diverse range of high-quality products, XYD has garnered esteem both domestically and internationally.

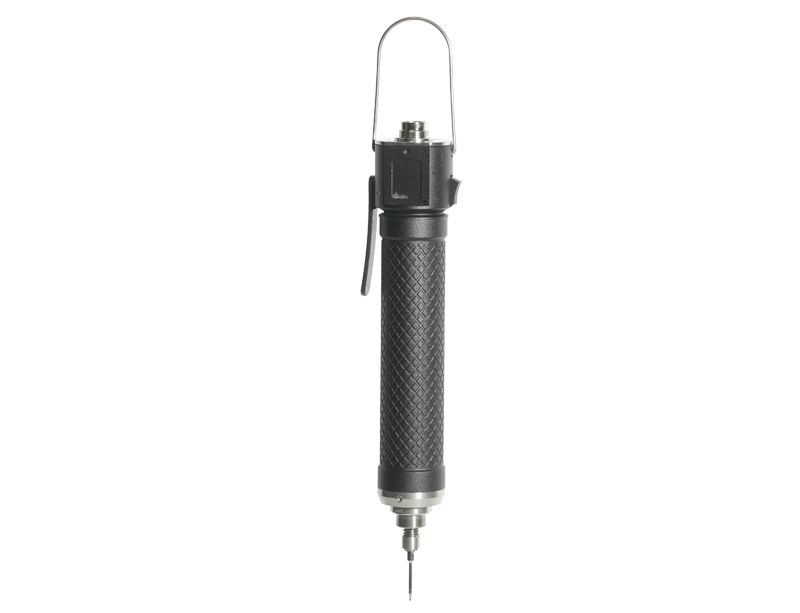

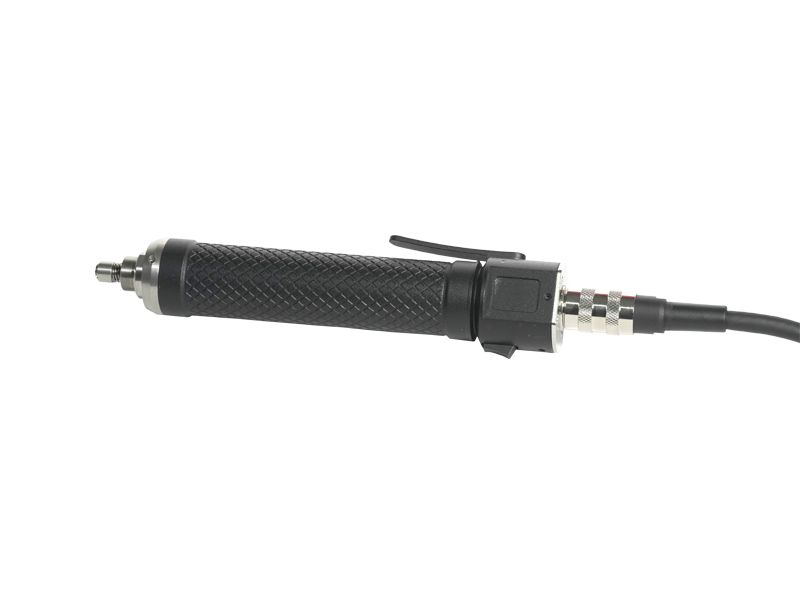

In-Line Torque YM-ZN-050 DC24V5A Servo Smart Screwdriver

Product Details:

Place of origin：China

Brand Name：XYD

Certification：CE

P/N：S01001000300001

Payment&Shipping Terms：

Minimum Order Quantity：1 set

Price：Negotiable

Packaging Details：Paper Box

Delivery Time: 1-4weeks

Payment Terms：TT

Name: High Torque Smart Electric Screwdriver

The Power Of Motor：DC24v5A

Speed：20-1000rpm

Rated Torque：0.10-0.50N.m

Bit Type：Half-moon/Hios

Accessories:Controller, Power Adapter，Cable

Features

• Adopting a closed-loop servo motor controller with higher accuracy up to ± 5% and 10 million times tightening life span even under low speed tightening situation.

• Concisely designed structure and directly connecting motor to save maintenance labor cost

• Multiple product series choices

• Equipped with an angle encoder to allow more flexible rotation need.

• Adopting current sensing method to achieve reverse and unlocking screw data recording

• The exterior material is made of aluminum-magnesium alloy, lightweight and durable, with better heat dissipation and corrosion resistance, able to cope with more complex and harsh working environment.

Specifications

Model Number	Compatible Controller	Applicable Bit Type	Torque			Free Speed	Length	Width	Weight
Model Number	Compatible Controller	mm	Kgf.cm	N.m	lbf.in	RPM	mm	mm	Kg
YM-ZN-008	YM-2448-05	Φ4 Half Moon/ Φ4 Hios	0.20-0.80	0.02-0.08	0.18-0.72	20-1000	197	28	0.33
YM-ZN-025	YM-2448-05	Φ4 Half Moon/ Φ4 Hios	0.50-2.50	0.05-0.25	0.45-2.25	20-1000	215	30	0.53
YM-ZN-050	YM-2448-105	Φ4 Half Moon/ Φ4 Hios	1.00-5.00	0.10-0.50	0.90-4.5	20-1000	222	33	0.67
YM-ZN-120	YM-2448-510	Φ5 Hios	2.00-12.00	0.20-1.20	1.80-10.80	50-1000	241	30	0.65
YM-ZN-150	YM-2448-10	HEX 6.35	5.00-15.00	0.50-1.5	4.50-13.50	50-800	247.5	34	0.84
YM-ZN-250		HEX 6.35	10.00-25.00	1.00-2.50	9.00-22.50	50-800	247.5	34	0.84
YM-ZN-600		HEX 6.35	20.00-60.00	2.00-6.00	18.00-54.00	50-600	247.5	34	0.89
YM-ZN-800		HEX 6.35	30.00-80.00	3.00-8.00	27.00-72.00	50-600	247.5	34	0.89
YM-ZN-1000		HEX 6.35	50.00-100.00	5.00-10.00	45.00-90.00	50-400	294.5	35	1.14
YM-ZN-1500		HEX 6.35	100.00-150.00	10.00-15.00	90.00-135.00	50-400	303.5	35	1.50
