XYD stands out as a premier manufacturer and supplier of Smart Handheld Electric Screwdrivers. Our steadfast dedication to providing top-notch products has earned us a reputation for superior craftsmanship and competitive pricing. The popularity of our Smart Electric Screwdriver extends beyond China, making it a sought-after choice in the global market.
XYD operates as a prominent Chinese factory specializing in the production and supply of Smart Handheld Electric Screwdrivers and their corresponding spare parts. Our customer base spans across the globe. Thanks to our adaptable organizational structure, XYD is well-equipped to deliver rapid and personalized responses to meet the unique needs of our clients. We take pride in providing high-quality technological solutions tailored to the diverse requirements of our global clientele.
Place of origin:China
Brand Name:XYD
Certification:CE
P/N:S01003000300001
Minimum Order Quantity:1 set
Price:Negotiable
Packaging Details:Paper Box
Delivery Time: 1-4weeks
Payment Terms:TT

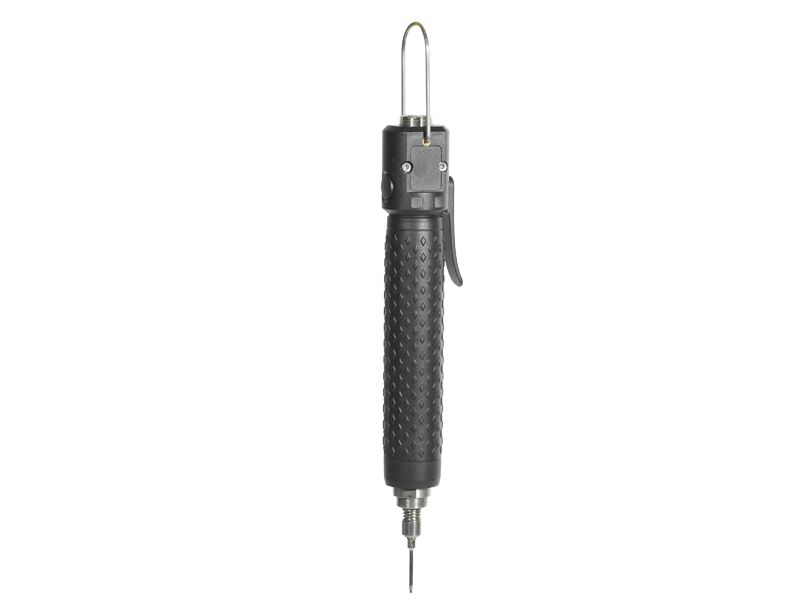

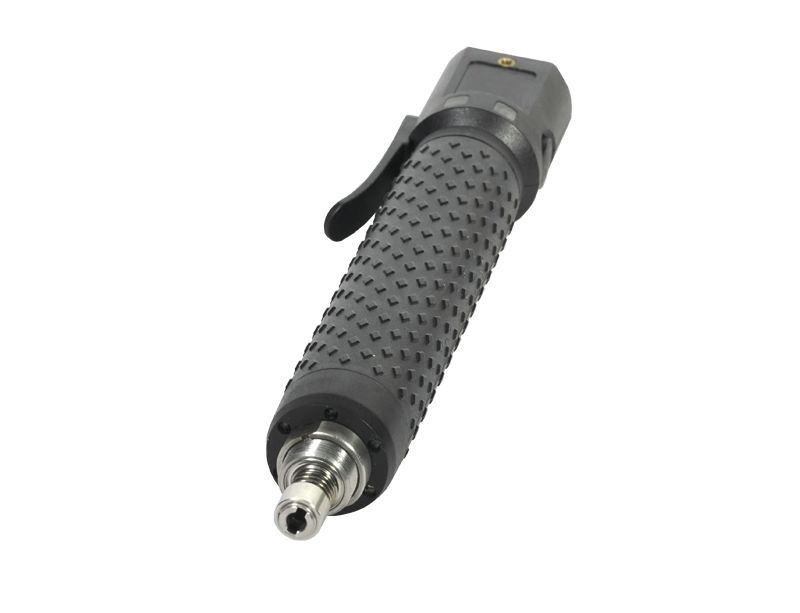

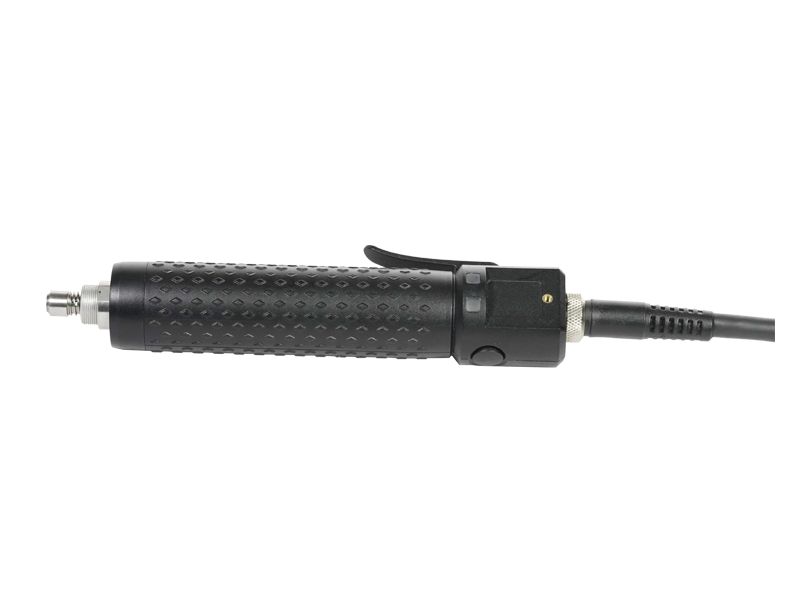

Name: Smart Handheld Electric Screwdriver
The Power Of Motor:DC24v5A
Speed:20-1000rpm
Rated Torque:0.02-0.08N.m
Bit Type:Half-moon/Hios
Accessories: Controller, Power Adapter, Cable
• With LED light and alarm light to make it possible to work under the dim environment so that the operator can observe the tightening situation at any time.
• Adopting a closed-loop servo motor controller with higher accuracy up to ± 5% and 5 million times tightening life span even under low speed tightening situation.
• Concisely designed structure and directly connecting motor to save maintenance labor cost
• Multiple product series choices
• Equipped with an angle encoder to allow more flexible rotation need.
• Adopting current sensing method to achieve reverse and unlocking screw data recording
• The exterior material is made of aluminum-magnesium alloy, lightweight and durable, with better heat dissipation and corrosion resistance, able to cope with more complex and harsh working environment.
Model Number |
Compatible Controller |
Applicable Bit Type |
Torque |
Free Speed |
Length |
Width |
Weight |
||
mm |
Kgf.cm |
N.m |
lbf.in |
RPM |
mm |
mm |
Kg |
||
YM-ZN-008-V1 |
YM-2448-05-V1 |
Φ4 Half Moon/ Φ4 Hios |
0.20-0.80 |
0.02-0.08 |
0.18-0.72 |
20-1000 |
194.2 |
27 |
0.28 |
YM-ZN-008-V2 |
YM-2448-05-V2 |
0.20-0.80 |
0.02-0.08 |
0.18-0.72 |
20-1000 |
194.2 |
27 |
0.28 |
|
YM-ZN-015-V1 |
YM-2448-05-V1 |
0.3-1.5 |
0.03-0.15 |
0.27-1.35 |
20-1000 |
194.2 |
33 |
0.4 |
|
YM-ZN-015-V2 |
YM-2448-05-V2 |
0.3-1.5 |
0.03-0.15 |
0.27-1.35 |
20-1000 |
194.2 |
33 |
0.4 |
Φ4 Hios
Half-moon(Tail) Φ4mm
