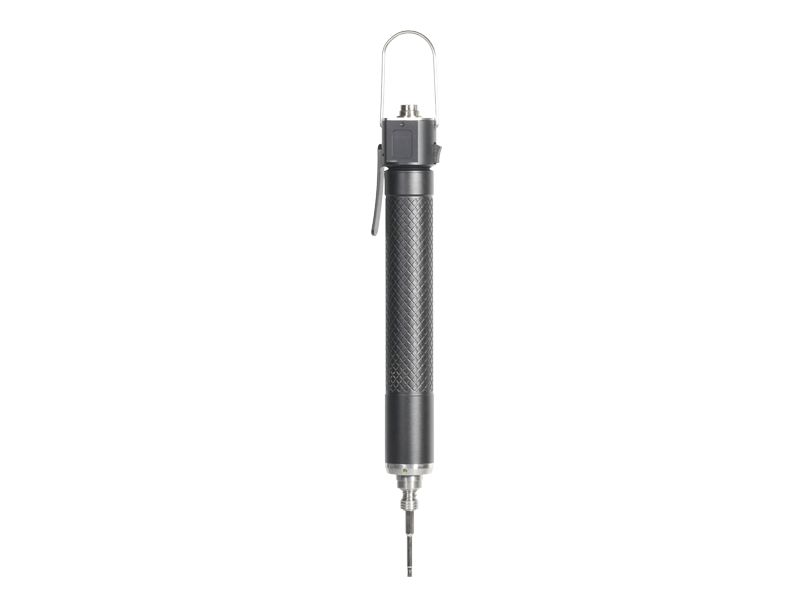

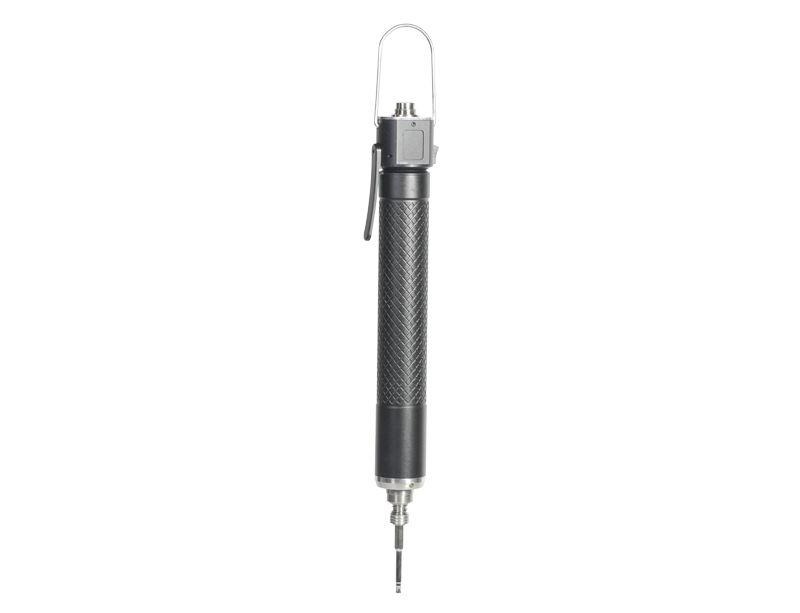

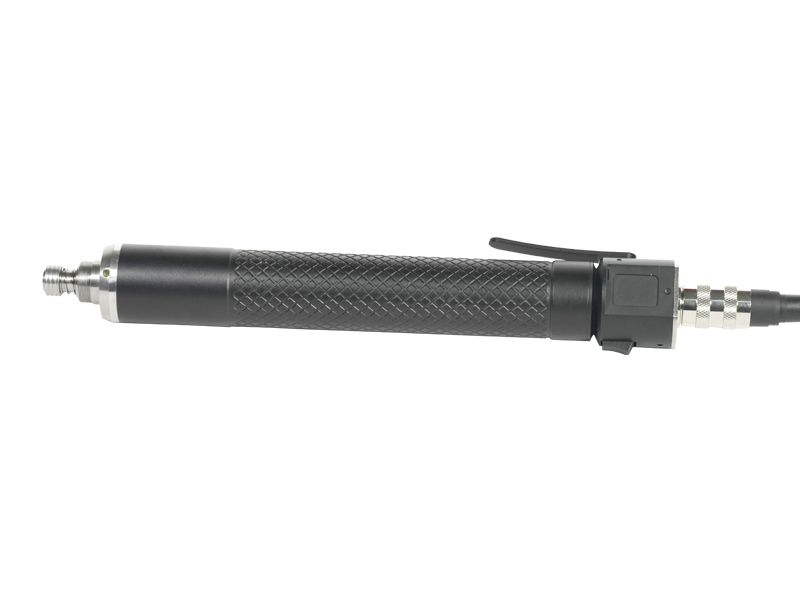

In-Line Torque Smart Electric Screwdriver

The high quality in-line torque smart electric screwdriver is a specialized tool designed for precise and controlled tightening of screws. This type of electric screwdriver integrates smart technology to offer features such as torque control, data logging, and connectivity. The primary feature is the ability to control and set the torque applied during screw tightening. This ensures that screws are fastened with the appropriate amount of force, preventing over-tightening or under-tightening.

Model:YM-ZN-1000NLK

Send Inquiry

Product Description

High quality In-Line Torque Smart Electric Screwdriver is offered by China manufacturer XYD. Buy Smart Electric Screwdriver which is of high quality directly with low price.

In-Line Torque YM-ZN-1000NLK DC48V10A Servo Smart Screwdriver

Product Details:

Place of origin：China

Brand Name：XYD

Certification：CE

P/N：S01002000900001

Payment&Shipping Terms：

Minimum Order Quantity：1 set

Price：Negotiable

Packaging Details：Paper Box

Delivery Time: 1-4weeks

Payment Terms：TT

Name: In-Line Torque Smart Electric Screwdriver

The Power Of Motor：DC48V(10A)

Speed：50-400rpm

Rated Torque：5.00-10.00N.m

Bit Type：HEX 6.35

Accessories: Controller, Power Adapter，Cable

Features

• Adopting a closed-loop servo motor controller with higher accuracy up to ± 10% and 10 million times tightening life span even under low speed tightening situation.

• Concisely designed structure and directly connecting motor to save maintenance labor cost

• Multiple product series choices

• Equipped with an angle encoder to allow more flexible rotation need.

• Adopting current sensing method to achieve reverse and unlocking screw data recording

• The exterior material is made of aluminum-magnesium alloy, lightweight and durable, with better heat dissipation and corrosion resistance, able to cope with more complex and harsh working environment.

Specifications

Model Number	Compatible Controller	Applicable Bit Type	Torque			Free Speed	Length	Width	Weight
Model Number	Compatible Controller	mm	Kgf.cm	N.m	lbf.in	RPM	mm	mm	Kg
YM-ZN-008NLK	YM-DNC-2448-05	Φ4 Half Moon/ Φ4 Hios	0.20-0.80	0.02-0.08	0.18-0.72	20-1000	197	28	0.33
YM-ZN-025NLK	YM-DNC-2448-05	Φ4 Half Moon/ Φ4 Hios	0.50-2.50	0.05-0.25	0.45-2.25	20-1000	215	30	0.53
YM-ZN-050NLK	YM-DNC-2448-105	Φ4 Half Moon/ Φ4 Hios	1.00-5.00	0.10-0.50	0.90-4.5	20-1000	222	33	0.67
YM-ZN-120NLK	YM-DNC-2448-510	Φ5 Hios	2.00-12.00	0.20-1.20	1.80-10.80	50-1000	241	30	0.65
YM-ZN-150NLK	YM-NDC-2448-10	HEX 6.35	5.00-15.00	0.500-1.5	4.50-13.50	50-800	247.5	34	0.84
YM-ZN-250NLK		HEX 6.35	10.00-25.00	1.00-2.50	9.00-22.50	50-800	247.5	34	0.84
YM-ZN-600NLK		HEX 6.35	20.00-60.00	2.00-6.00	18.00-54.00	50-600	247.5	34	0.89
YM-ZN-800NLK		HEX 6.35	30.00-80.00	3.00-8.00	27.00-72.00	50-600	247.5	34	0.89
YM-ZN-1000NLK		HEX 6.35	50.00-100.00	5.00-10.00	45.00-90.00	50-400	294.5	35	1.14
YM-ZN-1500NLK		HEX 6.35	100.00-150.00	10.00-15.00	90.00-135.00	50-400	303.5	35	1.50
