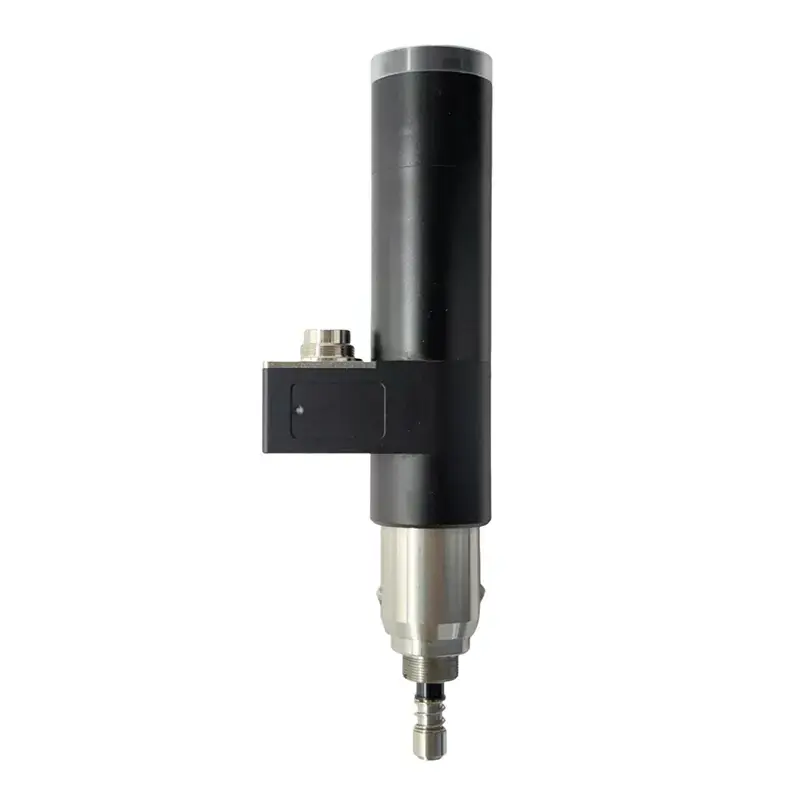

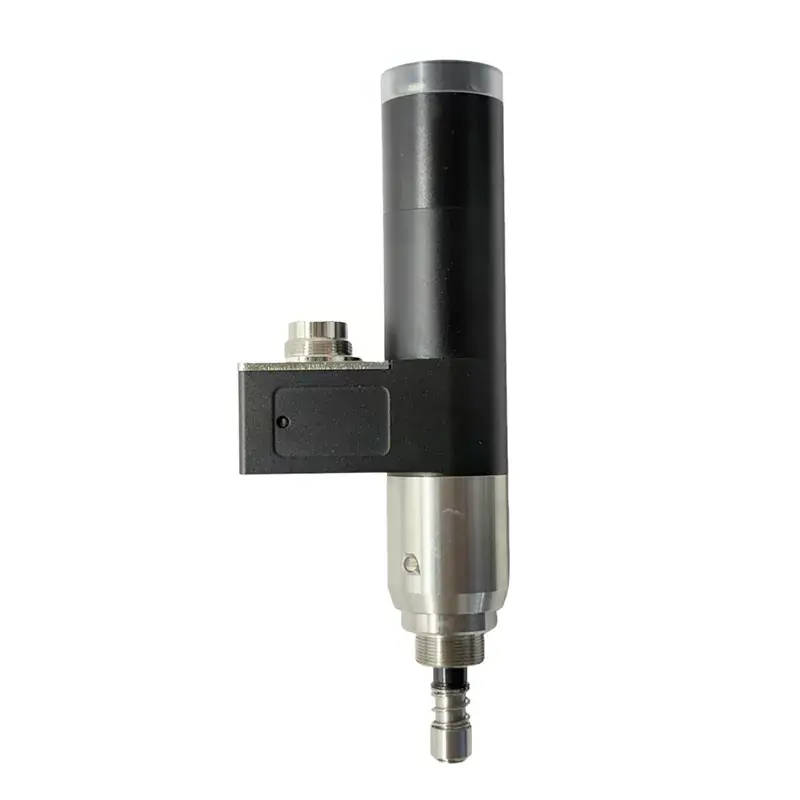

Fixed Smart Screwdriver with Verticality Detection

XYD is the manufacturer and supplier of Professional Fixed Smart Screwdriver with Inclination Detection. It is equipped with a closed-loop servo motor, with an accuracy of ±3%. It has a built-in gyroscope that can monitor the tilt angle, torque and rotational speed in real time. It supports data upload. The aluminum-magnesium alloy body is durable and has good heat dissipation. It has CE/UL certifications. The minimum order quantity is low and the delivery cycle is short.

Send Inquiry

Product Description

Fixed Smart Screwdriver with Inclination Detection is suitable for industrial precision fastening operations. It is compatible with dedicated controllers and various bit types. It comes with a standard power adapter and data cable. The entire machine adopts closed-loop control and current sensing technology, featuring long tightening lifespan and flexible angle control. It can record forward and reverse locking data. The structure is simple and easy to maintain, supporting negotiation for customization. It is packaged in a cardboard box and paid for by TT, meeting various requirements for automated assembly scenarios.

Product Details

Origin: China

Product Name: XYD

Certification: CE / UL

Payment and Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: Paper Box

Delivery Time: 1-4 Weeks

Payment Terms: TT

Basic Parameters

Name: Fixed Smart Screwdriver with Inclination Detection

Motor Power: DC24V 5A

Speed Range: 20 - 1000 rpm

Torque Range: 0.02 - 0.08 N·m 0.20 - 0.80 kgf.cm

Shaft Type: Half moon

Compatible Controller: YM-NDC-2448-05

Accessories: Power adapter, data cable

Function

✔ Adopts closed-loop servo motor control with accuracy of ±3%, and 10 million tightening cycle life at low speed.

✔ Built-in gyroscope and accelerometer, real-time monitor tilt angle of the screwdriver.

✔ Built-in pressure sensor real-time monitor pressure.

✔ Real-time monitoring of rotation angle and torque value.

✔ Real-time monitoring of pressure value.

✔ Torque angle data can be uploaded.

✔ Simple structural design with motor directly connected reduce maintenance costs.

✔ Multiple product series are available for selection.

✔ Equipped with angle encoder, meet more flexible rotation requirements.

✔ Using current sensing method to record reverse and unlock screw data.

✔ The housing adopts aluminum-magnesium alloy, lightweight, durable, with superior heat dissipation and corrosion resistance, ideal for harsh and complex working conditions.

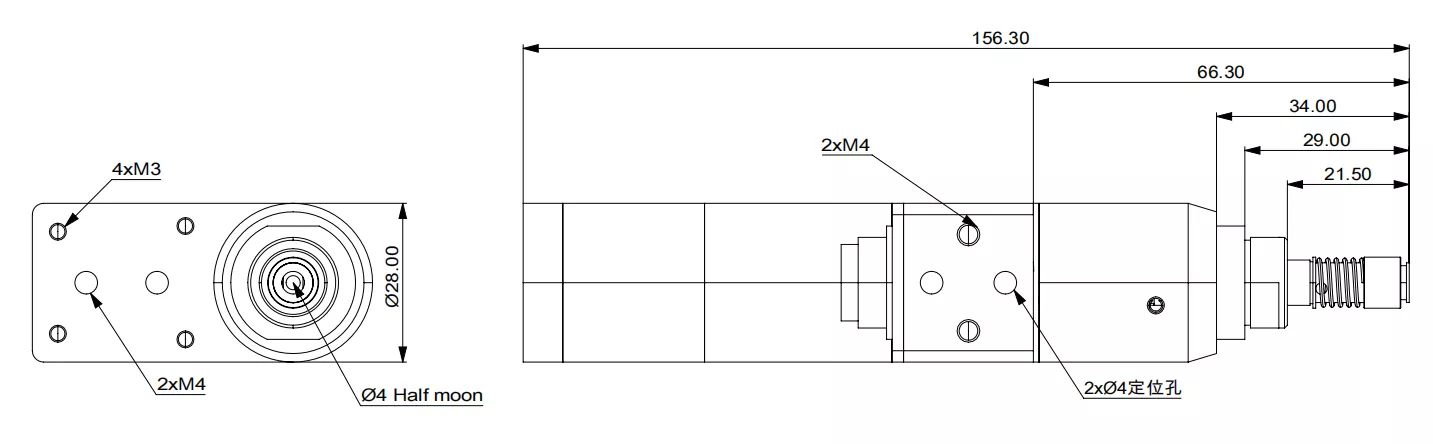

Specification

Model	Controller model	Interface type	Torsional force			Speed	Length	Width	Weight
Model	Controller model	mm	Kgf.cm	N.m	lbf.in	RPM	mm	mm	Kg
YM-ZN-008NLK-QJ	YM-NDC-2448-05	Ø4 Half moon	0.20-0.80	0.02-0.08	0.18-0.72	20-1000	157	28	0.35
YM-ZN-015NLK-QJ			0.30-1.50	0.03-0.15	0.27-1.35	20-1000	193	34	0.60
YM-ZN-025NLK-QJ			0.50-2.50	0.05-0.25	0.45-2.25	20-1000	193	34	0.60
YM-ZN-050NLK-QJ	YM-NDC-2448-105		1.00-5.00	0.10-0.50	0.90-4.5	20-1000	196	36	0.61
YM-ZN-120NLK-QJ	YM-NDC-2448-105		2.00-12.00	0.20-1.20	1.80-10.80	50-1000	222	34	0.70
YM-ZN-150NLK-QJ	YM-NDC-2448-10	HEX 6.35	5.00-15.00	0.500-1.5	4.50-13.50	50-800	246	38	0.86
YM-ZN-250NLK-QJ		HEX 6.35	10.00-25.00	1.00-2.50	9.00-22.50	50-800	246	38	0.86
YM-ZN-600NLK-QJ		HEX 6.35	20.00-60.00	2.00-6.00	18.00-54.00	50-600	250	38	0.90
YM-ZN-1000NLK-QJ		HEX 6.35	50.00-100.00	5.00-10.00	45.00-90.00	50-400	293	38	1.15
