Electrical Screwdriver With Power Supply

XYD is dedicated to delivering top-tier Electrical Screwdriver With Power Supply manufactured in China to a global audience. Through active promotion of diversified research and development in Electrical Screwdrivers, coupled with our independent factory, we have cultivated a product line with competitive advantages and pricing across various industries.

Model:YM-ZN-250

Send Inquiry

Product Description

XYD is a manufacturing company in China that mainly produces and sells Electrical Screwdriver With Power Supply. XYD has advanced machinery and equipment and modern production lines. We put customers first as the center to customize smart electrical screwdriver that meet the requirements.

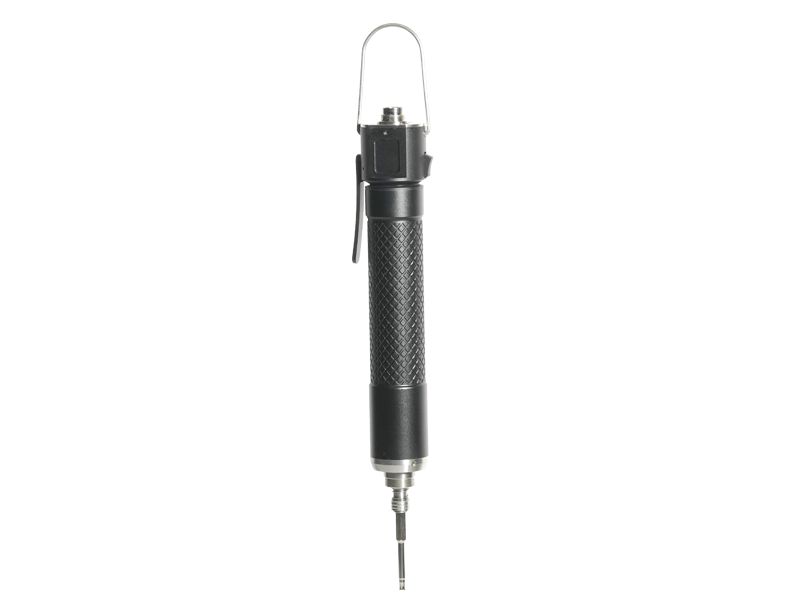

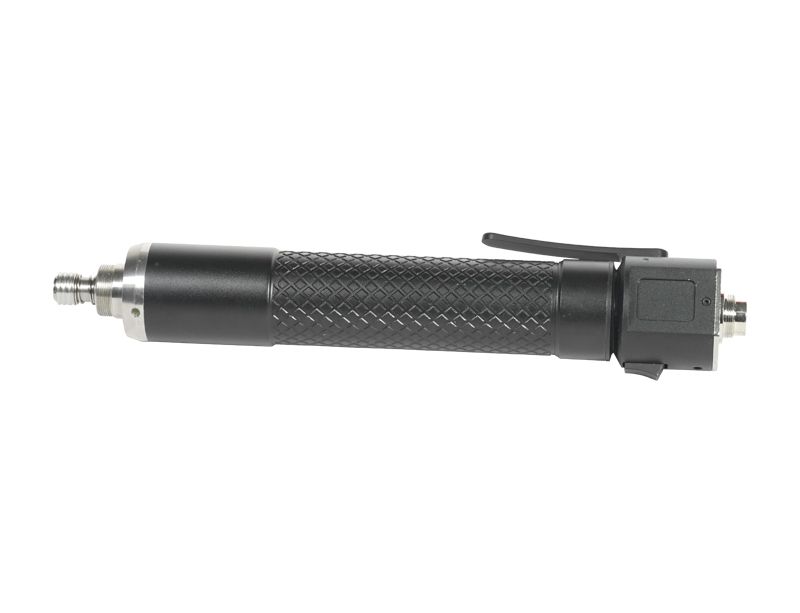

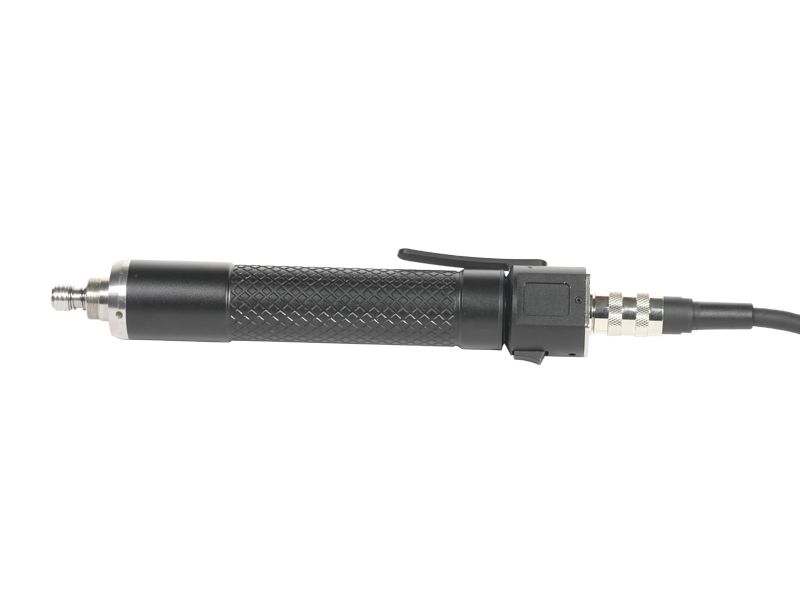

In-Line Torque YM-ZN-250 DC48V10A Servo Smart Screwdriver

Product Details:

Place of origin：China

Brand Name：XYD

Certification：CE

P/N：S01001000600001

Payment&Shipping Terms：

Minimum Order Quantity：1 set

Price：Negotiable

Packaging Details：Paper Box

Delivery Time: 1-4weeks

Payment Terms：TT

Name: Electrical Screwdriver With Power Supply

The Power Of Motor：DC48V(10A)

Speed：50-800rpm

Rated Torque：1.00-2.50N.m

Bit Type：HEX 6.35

Accessories: Controller, Power Adapter，Cable

Features

• Adopting a closed-loop servo motor controller with higher accuracy up to ± 5% and 10 million times tightening life span even under low speed tightening situation.

• Concisely designed structure and directly connecting motor to save maintenance labor cost

• Multiple product series choices

• Equipped with an angle encoder to allow more flexible rotation need.

• Adopting current sensing method to achieve reverse and unlocking screw data recording

• The exterior material is made of aluminum-magnesium alloy, lightweight and durable, with better heat dissipation and corrosion resistance, able to cope with more complex and harsh working environment.

Specifications

Model Number	Compatible Controller	Applicable Bit Type	Torque			Free Speed	Length	Width	Weight
Model Number	Compatible Controller	mm	Kgf.cm	N.m	lbf.in	RPM	mm	mm	Kg
YM-ZN-008	YM-2448-05	Φ4 Half Moon/ Φ4 Hios	0.20-0.80	0.02-0.08	0.18-0.72	20-1000	197	28	0.33
YM-ZN-025	YM-2448-05	Φ4 Half Moon/ Φ4 Hios	0.50-2.50	0.05-0.25	0.45-2.25	20-1000	215	30	0.53
YM-ZN-050	YM-2448-105	Φ4 Half Moon/ Φ4 Hios	1.00-5.00	0.10-0.50	0.90-4.5	20-1000	222	33	0.67
YM-ZN-120	YM-2448-510	Φ5 Hios	2.00-12.00	0.20-1.20	1.80-10.80	50-1000	241	30	0.65
YM-ZN-150	YM-2448-10	HEX 6.35	5.00-15.00	0.50-1.5	4.50-13.50	50-800	247.5	34	0.84
YM-ZN-250		HEX 6.35	10.00-25.00	1.00-2.50	9.00-22.50	50-800	247.5	34	0.84
YM-ZN-600		HEX 6.35	20.00-60.00	2.00-6.00	18.00-54.00	50-600	247.5	34	0.89
YM-ZN-800		HEX 6.35	30.00-80.00	3.00-8.00	27.00-72.00	50-600	247.5	34	0.89
YM-ZN-1000		HEX 6.35	50.00-100.00	5.00-10.00	45.00-90.00	50-400	294.5	35	1.14
YM-ZN-1500		HEX 6.35	100.00-150.00	10.00-15.00	90.00-135.00	50-400	303.5	35	1.50
